Place of Origin:
Zhejiang Province，China
Brand Name:
ABST
Certification:
MSDS, TDS
Model Number:
AB-17S
The ABST Pro AB-17S is an economical gravity-feed pneumatic spray gun designed for daily automotive refinishing, spot repair and general coating applications.
With a 600ml plastic upper cup, 1.4mm standard nozzle, optional 1.7mm and 2.0mm nozzle sizes, and independent controls for spray pattern, fluid output and airflow, it provides a practical solution for repair shops, distributors and small coating businesses.
Its main value is straightforward: lower equipment cost, convenient small-batch spraying, easy color changes and simple daily maintenance.
The 600ml plastic cup is suitable for:
Gravity-feed operation allows coating to flow from the upper cup into the spray gun without relying on a long suction tube.
This makes the AB-17S particularly practical for applications where relatively small quantities of paint are required.
The standard 1.4mm nozzle is suitable for many automotive refinishing applications, including compatible:
The actual nozzle, viscosity and spraying parameters should always follow the coating manufacturer's TDS.
Different nozzle sizes allow distributors and workshops to configure the gun for different coating requirements.
| Nozzle | Typical Application |
| 1.4mm | Automotive color coats, clear coats and finer spraying |
| 1.7mm | Medium-viscosity coatings and selected automotive or industrial materials |
| 2.0mm | Higher-viscosity coatings, selected primers and industrial coatings |
No single nozzle is suitable for every coating. Material viscosity and manufacturer recommendations should be considered first.
For automotive repair, many jobs do not require a large volume of coating.
A workshop may only need to spray:
For these applications, a gravity-feed gun can be convenient because the coating is supplied directly from the upper cup.
This makes the AB-17S a practical option for workshops that prioritize everyday usability and procurement cost.
A 600ml cup provides a balance between material capacity and hand-held weight.
A smaller cup may require frequent refilling, while an unnecessarily large cup can add weight during localized repair work.
The 600ml capacity is particularly suitable for:
Bumpers → Fenders → Doors → Local repairs → Small and medium panels
For large-area continuous spraying, buyers should select the cup size and spray-gun configuration according to actual material consumption.
The AB-17S provides three basic spray controls.
Controls the width of the spray fan.
The operator can adjust the pattern according to:
Controls the amount of coating delivered through the nozzle.
Adjustment should consider:
Controls the air supply used for atomization.
The final setting depends on the coating, nozzle and available air supply.
The AB-17S is particularly suitable for everyday automotive repair work.
Suitable for compatible color coats and clear coats after appropriate substrate preparation.
Can be used for color and clearcoat application after bodywork, filler and primer preparation.
Suitable for local repainting, accident repair and panel refinishing.
For used-car repair operations with frequent vehicle turnover, an economical spray gun can help control equipment procurement costs.
The AB-17S 1.4mm configuration is positioned for routine automotive refinishing.
Suitable applications can include compatible:
However, final spraying performance depends on the complete system:
Spray gun + nozzle + coating viscosity + reducer + air supply + operator technique
Therefore, the product should not be marketed as automatically suitable for every coating simply because the nozzle is 1.4mm.
Repair shops frequently handle different colors such as:
A gravity-feed upper cup is convenient for these relatively small-batch applications.
A typical workflow is:
Remove remaining paint → Clean cup → Clean fluid passage → Clean nozzle and air cap → Load next coating
For workshops handling multiple colors, separate guns can also be assigned to different coating stages.
Because the AB-17S is positioned as an economical spray gun, workshops can consider assigning different guns for different purposes.
For example:
| Gun Assignment | Typical Use |
| Gun 1 | Automotive color coat |
| Gun 2 | Clear coat |
| Gun 3 | Primer |
| Gun 4 | Backup / training |
This approach can reduce the need for frequent full-system cleaning and may help reduce cross-contamination between coating types.
The AB-17S is not designed around high-end professional spray-gun features.
Its commercial value is based on practical daily requirements:
For routine repair work, these features cover many basic spraying requirements without requiring every workshop to purchase high-priced equipment.
| Feature | ABST Pro AB-17S | Premium Professional Gun |
| Positioning | Economical / practical | Professional / premium |
| Cup | 600ml plastic upper cup | Varies |
| Standard nozzle | 1.4mm | Varies |
| Spot repair | Suitable | Suitable |
| Daily repair work | Suitable | Suitable |
| Backup gun | Cost-efficient option | Higher investment |
| Training use | Practical | Higher equipment cost |
| Multi-gun workshop setup | Easy to scale | Higher investment |
| Extreme atomization requirements | Conventional positioning | Often more specialized |
| High-intensity professional use | Conventional positioning | May offer more specialized performance |
The AB-17S should therefore be positioned according to its actual strength: practical daily spraying at an accessible procurement level.
| Feature | Gravity Feed AB-17S | Siphon Feed |
| Cup position | Upper cup | Lower cup |
| Paint delivery | Gravity | Air-assisted suction |
| Small-batch spraying | Convenient | Less convenient in some applications |
| Typical repair use | Spot and panel repair | Larger-area applications depending on gun |
| Color changes | Convenient | Depends on configuration |
| Cup capacity | 600ml | Depends on model |
| Typical positioning | Automotive repair / general painting | Continuous or larger-area spraying |
For workshops frequently performing small and medium repair jobs, the gravity-feed configuration provides a practical operating format.
The AB-17S can also be considered for compatible coatings used in:
Coating compatibility should be confirmed according to viscosity, solvent system and the coating manufacturer's equipment recommendations.
The stainless steel needle and brass air cap provide a practical material configuration for general coating applications.
However, buyers should not assume universal compatibility with every waterborne coating.
Before long-term use, confirm:
For solvent-based systems, the appropriate cleaning solvent should also be selected according to the coating system.
Even with the correct nozzle, spraying performance depends on the complete application setup.

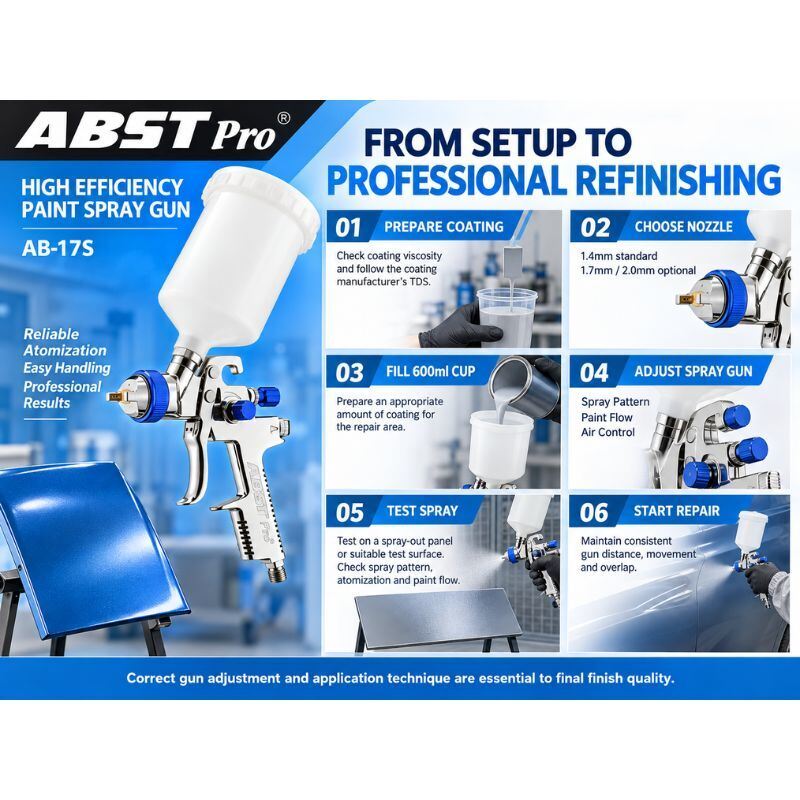

Before painting the actual vehicle or workpiece:
Prepare a test panel.
Select the appropriate nozzle.
Adjust coating viscosity according to the TDS.
Set the initial spray controls.
Test the spray fan.
Check atomization and material distribution.
Adjust fluid and airflow gradually.
Confirm the finish before production spraying.
Check for:
Check:
Check:
Check:
Check:
The spray gun should be adjusted systematically rather than simply increasing air pressure whenever the finish is poor.
After spraying, coating residue may remain around:
If the material cures inside these areas, it can affect subsequent:
Therefore, timely cleaning is important for maintaining consistent operation.
Remove remaining coating
↓
Clean the cup
↓
Clean the fluid passage
↓
Clean the nozzle and needle
↓
Clean the air cap
↓
Reassemble
Do not use hard metal objects to enlarge or damage the small air-cap holes.
For daily spot repair and panel refinishing.
For workshops that need practical equipment without a high initial investment.
For frequent repair and repainting operations.
An economical spray gun can complement existing automotive repair-tool product lines.
For compatible coatings and small-to-medium painting applications.
Suitable as an aftermarket spray-gun SKU for distributors serving repair shops and small coating businesses.
For distributors, AB-17S can be positioned as a practical entry-level or daily-use spray gun.
It can be sold alongside:
This creates a broader automotive refinishing consumables and tools product range.
Before placing a wholesale order, buyers should confirm:
For distributors, confirming the primary customer application first helps avoid stocking unsuitable nozzle configurations.

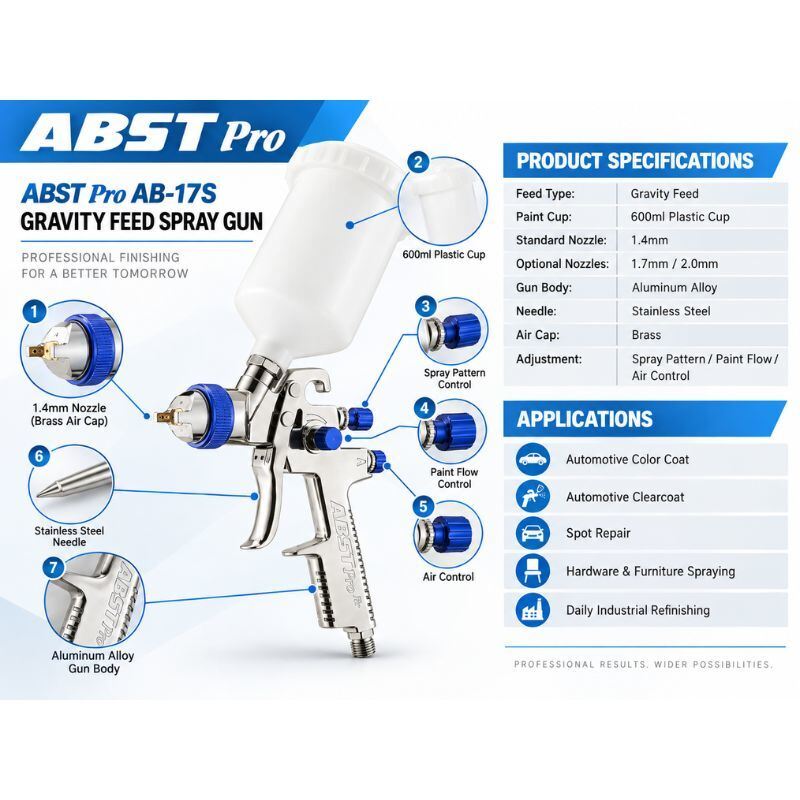

| Specification | Details |
| Brand | ABST Pro |
| Model | AB-17S |
| Product Type | Gravity Feed Pneumatic Spray Gun |
| Feed Type | Gravity Feed |
| Cup Position | Upper Cup |
| Cup Capacity | 600ml |
| Cup Material | Plastic |
| Standard Nozzle | 1.4mm |
| Optional Nozzles | 1.7mm / 2.0mm |
| Needle | Stainless Steel |
| Air Cap | Brass |
| Gun Body | Aluminum Alloy |
| Adjustments | Spray Pattern / Fluid Output / Airflow |
| Main Applications | Automotive / Furniture / Hardware / General Industrial Painting |
| HS Code | 8424200000 |
600ml Gravity Feed Design Suitable for spot repair and small-to-medium painting jobs.
1.4mm Standard Nozzle Practical for compatible automotive color coats and clear coats.
Multiple Nozzle Options 1.4mm / 1.7mm / 2.0mm configurations for different coating requirements.
Three-Way Adjustment Independent control of spray pattern, fluid output and airflow.
Economical Workshop Solution Designed for daily repair work, backup guns, training and multi-gun workshop setups.
Broad Application Automotive refinishing, furniture, hardware and general industrial painting.
Distributor-Friendly SKU Suitable for aftermarket tool distributors and automotive repair-material wholesalers.
It is a 600ml upper-cup gravity-feed pneumatic spray gun designed for automotive refinishing and general painting applications.
The standard nozzle is 1.4mm. Optional 1.7mm and 2.0mm configurations can be used for different coating requirements.
It is suitable for many compatible automotive color coats and clear coats. Final selection should follow the coating manufacturer's TDS and viscosity requirements.
The upper-cup gravity-feed structure is convenient for relatively small quantities of coating and frequent repair or color-change work.
The standard plastic upper cup has a 600ml capacity.
It can be used with compatible primers when the selected nozzle size and coating viscosity are appropriate. Higher-viscosity primers may require a larger nozzle.
The AB-17S is positioned as an economical and practical spray gun for routine automotive repair, small workshops, backup use and general painting.
Confirm the required nozzle configuration, cup specification, target coating applications, packaging requirements and any OEM/private-label requirements before placing the order.
600ml Plastic Upper Cup
Gravity Feed
1.4mm Standard Nozzle
1.7mm / 2.0mm Optional
Three Independent Adjustments
Stainless Steel Needle
Brass Air Cap
Aluminum Alloy Gun Body
