Place of Origin:
Guangdong, China
Brand Name:
GATE
Certification:
MSDS, TDS
Model Number:
PTMF Series (S/M/L)
Product Type: Automotive Pre-Taped Plastic Masking Film
Colors: White / Blue
Sizes: 550mm × 25m / 1100mm × 25m / 1400mm × 25m
Main Applications: Automotive Refinishing, Body Repair, Spot Repair, Paint Booth Masking, Industrial Spraying
OEM / ODM / Private Label: Available
Masking is one of the most repetitive preparation steps in automotive refinishing.
Traditional masking often requires technicians to:
Cut film → position film → apply masking tape → adjust edges → secure the film

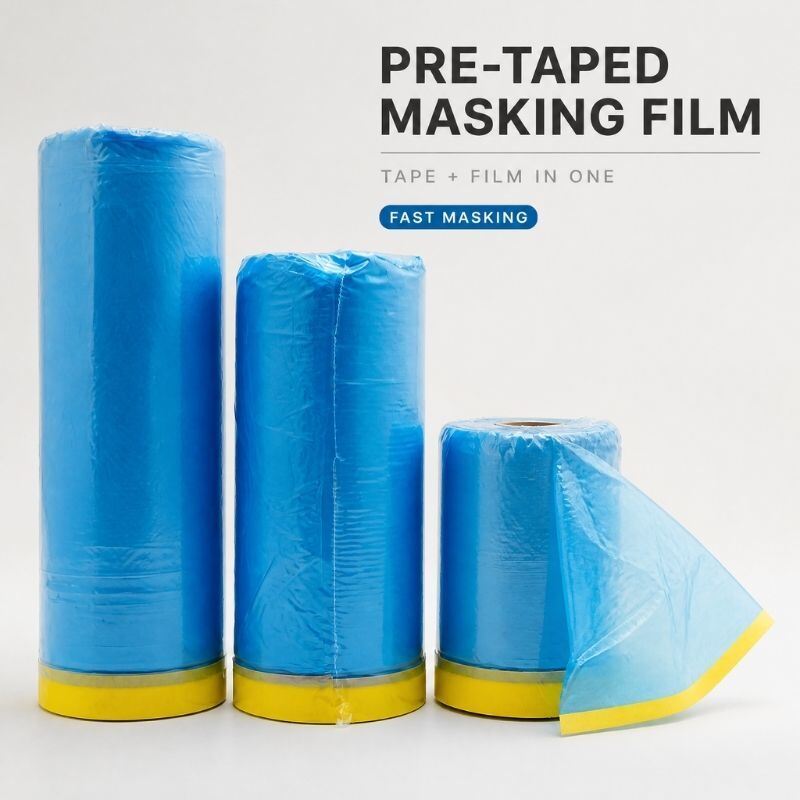

Our Pre-Taped Masking Film combines the plastic film and masking tape into one ready-to-use product.
The operator can simply:
Apply the tape → unfold the film → cover the surrounding area
This makes it a practical masking consumable for bodyshops handling frequent repair and repainting jobs.
During automotive refinishing, overspray can easily reach areas that are not intended to be painted.
The masking film helps cover and protect:
It can also be used during selected sanding, polishing and detailing operations where temporary surface protection is required.

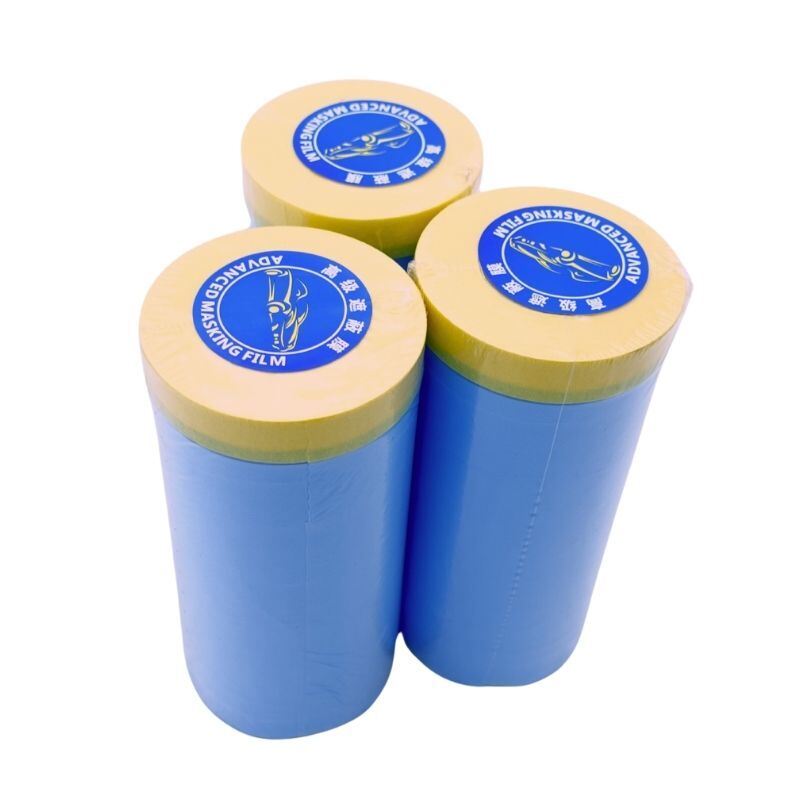

The masking tape is pre-attached to the plastic film, reducing the need to handle two separate masking materials.
The operator can establish the masking edge first and then unfold the film over the protected area.

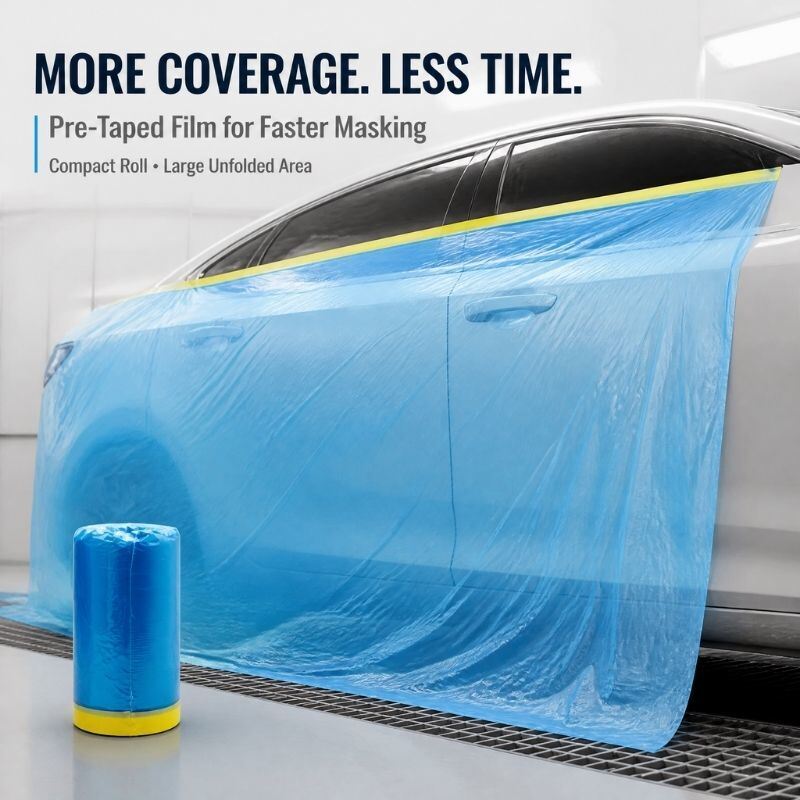

The larger 1100mm and 1400mm versions can cover substantial vehicle areas with fewer overlapping pieces.
The folded film remains compact before use and expands when needed.
The lightweight plastic film can be positioned around curved panels and irregular vehicle surfaces.
Two color options allow distributors to offer different masking-film choices to professional users.

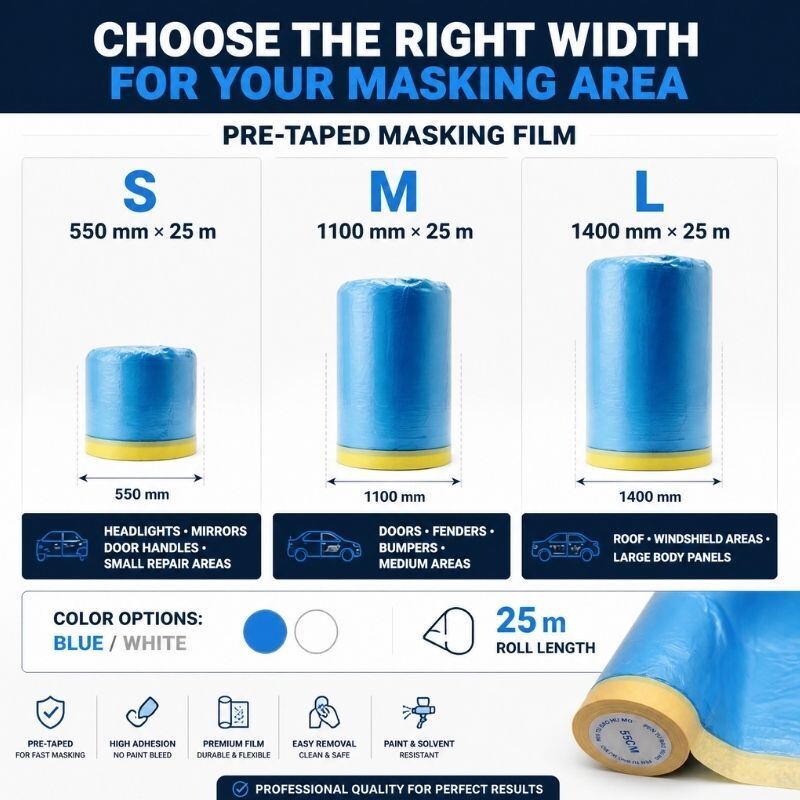

| Size | Dimensions | Packing | Recommended Application |
|---|---|---|---|
| S | 550mm × 25m | 100 rolls/carton | Headlights, mirrors, door handles, spot repair |
| M | 1100mm × 25m | 50 rolls/carton | Doors, fenders, bumpers, medium areas |
| L | 1400mm × 25m | 50 rolls/carton | Roof, large panels, windshield areas, extensive masking |
Carton Size: Approx. 38.5 × 38 × 34.5 cm
Actual packing configuration may vary according to the selected size and customer packaging requirements.
| Item | Specification |
|---|---|
| Product Name | Pre-Taped Masking Film |
| Product Type | Automotive Pre-Taped Plastic Masking Film |
| Film Type | Plastic Masking Film with Pre-Attached Masking Tape |
| Color | White / Blue |
| S Size | 550mm × 25m |
| M Size | 1100mm × 25m |
| L Size | 1400mm × 25m |
| S Packing | 100 rolls/carton |
| M Packing | 50 rolls/carton |
| L Packing | 50 rolls/carton |
| Carton Size | Approx. 38.5 × 38 × 34.5 cm |
| Application | Automotive Painting & Masking |
| Other Application | Industrial Spraying / Detailing / Surface Protection |
| OEM | Available |
| ODM | Available |
| Private Label | Available |
| HS Code | 3920109090 |
For localized painting where only a small section of the vehicle is being refinished.
Recommended: 550mm × 25m
Cover adjacent panels, windows and surrounding vehicle components before spraying.
Recommended: 1100mm × 25m
Protect neighboring vehicle surfaces while leaving the bumper or repair area exposed.
Recommended: 550mm / 1100mm
For larger surfaces where wider film can reduce the number of overlapping sections.
Recommended: 1400mm × 25m
Cover glass areas during body painting and refinishing.
Recommended: 1100mm / 1400mm
Can be used as temporary protection during selected polishing, cleaning and repair procedures.

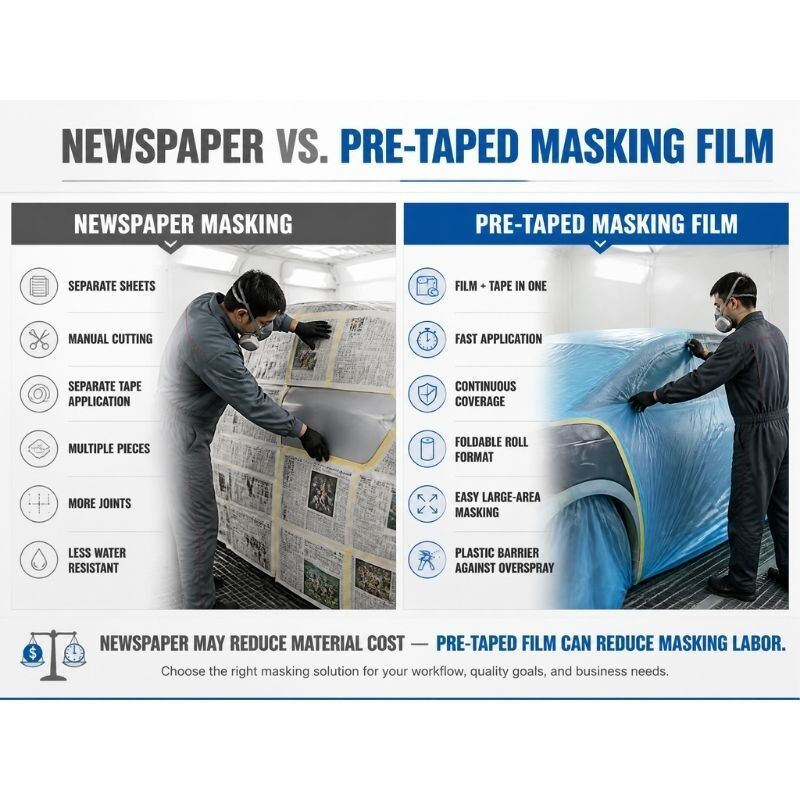

Traditional newspaper masking usually requires multiple operations:
Cut → Arrange → Join → Tape → Adjust
The paper can also become difficult to handle when exposed to moisture or liquid contamination.
The integrated structure simplifies the workflow:
Position → Unfold → Cover
The plastic film provides continuous coverage while the attached tape helps establish the masking edge.
Newspaper may have a low material cost, but professional bodyshops also need to consider:
For high-frequency repair operations, these factors can be important when selecting masking consumables.
| Repair Scenario | Suggested Size | Reason |
|---|---|---|
| Headlight / Mirror | 550mm | Easy handling around small components |
| Spot Repair | 550mm | Suitable for localized masking |
| Door Repair | 1100mm | Medium-width coverage |
| Fender Repair | 1100mm | Covers wider body areas |
| Bumper Repair | 550–1100mm | Flexible size selection |
| Hood | 1400mm | Wider coverage |
| Roof | 1400mm | Reduces overlapping sections |
| Windshield | 1100–1400mm | Suitable for larger glass areas |
Clean and dry the surface where the masking tape will be applied.
Identify the exact edge between the area to be painted and the area requiring protection.
Position the tape accurately along the required paint boundary.
Pull and unfold the plastic film to cover the surrounding surface.
Make sure the film does not interfere with the spray area. Use additional compatible tape if necessary.
After confirming the protected areas are fully covered, proceed with the planned painting operation.
A professional bodyshop may use several masking consumables together.
Pre-Taped Masking Film
+
Automotive Masking Tape
+
Masking Paper
+
Tack Cloth
+
Paint Preparation Consumables
This allows distributors to build a broader automotive refinishing consumables portfolio instead of selling individual products in isolation.
For best masking results:
The masking film is a paint protection material, not a substitute for proper surface preparation or professional masking technique.
For daily collision repair and repainting operations.
For spot repair and panel refinishing.
For repeated spray masking before primer, basecoat and clearcoat application.
For temporary protection during selected detailing procedures.
Suitable as part of a broader automotive masking product range.
Can also be offered for selected general spray-painting applications where the film and tape specifications are suitable.
For distributors and importers, the product can be developed as part of a private-label automotive masking range.
The available sizes and colors can be selected according to the target market and customer requirements.
MOQ, packaging artwork, labeling and customized specifications should be confirmed before production.
A single masking-film width is not ideal for every repair job.
A professional distributor can build a practical product range:
Spot Repair / Small Parts
General Bodyshop Use
Large-Area Masking
This three-size structure allows distributors to serve different bodyshop workflows while keeping the product range relatively simple.
GATE Pre-Taped Masking Film is designed for automotive refinishing, body repair and professional paint masking applications. The plastic masking film and masking tape are pre-attached, allowing technicians to establish the masking edge and unfold the film without separately handling conventional masking film and tape.
Available in 550mm × 25m, 1100mm × 25m and 1400mm × 25m, the range covers spot repairs, doors, fenders, bumpers, windows, hoods, roofs and larger vehicle areas.
The lightweight plastic film helps protect non-painted surfaces from paint overspray, spray mist, sanding dust and general workshop contamination. The 25-meter roll length is suitable for repeated bodyshop use.
Compared with newspaper masking, the integrated film-and-tape structure can reduce preparation steps and provide a cleaner, more standardized masking workflow.
White and blue options are available. OEM, ODM and private-label supply are supported for B2B customers.
It is used to protect non-painted areas during automotive painting, spot repair, body repair and other spray-painting operations. Typical protected areas include windows, headlights, mirrors, adjacent panels and other vehicle components.
The masking tape is already attached to the film. This allows the technician to position the tape and unfold the film in one workflow, reducing the need to separately fix ordinary plastic masking film.
The current range includes 550mm × 25m, 1100mm × 25m and 1400mm × 25m. The sizes are designed for small, medium and large masking applications.
The 550mm × 25m version is generally the most convenient for small repair areas such as headlights, mirrors, door handles and localized body repairs.
The 1100mm × 25m version is a practical general-purpose option for doors, fenders, bumpers and medium-sized vehicle masking requirements. Many distributors may also stock 550mm and 1400mm versions for specific jobs.
Yes, it is designed to provide temporary protection to non-painted areas during automotive refinishing. The actual application should be evaluated according to the masking tape specification, paint system, temperature and required masking time.
Yes. GATE supports OEM, ODM and private-label cooperation. Customized packaging, branding and selected specifications can be discussed according to the order requirements.
It can replace newspaper in many professional masking applications, particularly where faster preparation, continuous film coverage and a cleaner workflow are preferred. However, the appropriate masking material should always be selected according to the specific repair process and cost requirements.
